Stainless Steel 904L Pipes Manufacturer, Supplier and Exporter in Kuala lumpur, Malaysia

Based in Kuala Lumpur, Malaysia, Maria Pipes and Tubes has established itself as a reliable manufacturer and supplier of **Stainless Steel 904L Pipes**. They provide top-notch, high-performance piping solutions designed for the most corrosive and demanding industrial settings. Utilizing cutting-edge manufacturing methods—both seamless and welded—along with strict quality control measures, the company guarantees that its 904L pipes adhere to rigorous global standards. These pipes can be customized to various dimensions and are perfect for industries such as chemical processing, petrochemicals, offshore oil & gas, marine systems, pharmaceuticals, and power generation.

904L Stainless Steel Pipes Exporter in Malaysia, SS UNS N08904 Pipes Supplier in Kuala lumpur, 904L Stainless Steel Pipe Manufacturer in George town, SUS 904L Pipes Price List in Malaysia, ASTM A312 Stainless Steel 904L Pipe Distributor in Kuantan, Stainless Steel 1.4539 Pipes in Ipoh, Stainless Steel TP904L Pipe Exporters in Malaysia

Stainless Steel 904L Pipes are primarily composed of iron, chromium (19%), nickel (23%) and molybdenum (4%), as well as small amounts of copper and other elements These elements provide excellent resistance to pitting and crevice corrosion, especially in acidic environments. Mechanical properties include yield strength of 220 MPa, tensile strength of 490 MPa and elongation of 40%. The advantages of 904L pipe include excellent corrosion resistance, high strength and durability, making them suitable for use in the chemical, oil and gas, and marine industries Their non-magnetic properties provide their versatility is further enhanced.

Stainless Steel 904L Pipes Specification

Pipe Standard	ASTM A312 ASME SA312 / ASTM A358 ASME SA358
Pipe Dimension	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Pipe Sizes	1 / 2″ NB – 24″ NB
Pipe Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Steel Pipe Manufacturing Process	Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Stainless Steel Pipe Shapes	Hydraulic, Round, Rectangle, Square, Hex, Honed
Stainless Steel Pipe Schedule	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Pipe Ends	Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing

Stainless Steel 904L Pipes Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
904L	min.	–	–	–	–	–	19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

SS 904L Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
904L	490	220	35	70-90 typical	–

Equivalent Grades of Stainless Steel 904L Pipe

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	KS	AFNOR	EN
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ASME SA 312 TP904L Pipes Kuantan, Stainless Steel 904L Pipes Exporters in Malaysia, 904L Stainless Steel Pipe Manufacturers in George town, SS UNS N08904 Pipes Supplier in Kuala lumpur, SS 904L Schedule 20 Pipe Stockist in in Ipoh, SS 904L Pipes Distributor in Malaysia, 904L Stainless Steel Pipes in Kuala lumpur

Why Choose Stainless Steel 904L Pipes from Maria Pipes and Tubes?

**Stainless Steel 904L** (UNS N08904 / EN 1.4539) is a highly alloyed, low-carbon austenitic stainless steel that boasts a rich composition of chromium (19–23%), nickel (23–28%), molybdenum (4–5%), and copper (1–2%) ([allianzsteel.com][1], [ThePipingMart Blog][2], [Wikipedia][3]). This unique alloy mix provides outstanding resistance to pitting, crevice corrosion, chloride-induced stress corrosion cracking, and strong reducing acids, including sulfuric acid ([Wikipedia][3], [ThePipingMart Blog][2], [piyushsteel-pipes.com][4]).

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 904L Pipes Supplier in Kuala lumpur, Malaysia

Maria Pipes and Tubes, one of the largest suppliers of Stainless Steel 904L Pipes in Kuala lumpur, Malaysia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 904L Pipe Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

Stainless Steel 904L Pipes Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
			0-1000C	0-3150C	0-5380C	at 1000C	at 5000C
904L	8000	200	15.0	–	–	13.0	–	500	850

SS 904L Schedule 40 Pipe Price List in Kuala lumpur, Stainless Steel N08904 Pipes Supplier in Kuala lumpur, SS 904L Pipes Price Per Kg, ASTM A312 Stainless Steel 904L Pipe Exporter in George town, AISI 904L Pipes Stockist in Kuantan, 1 inch SS 904L Pipe Price List in Ipoh, SS 904L Pipe Weight Chart, SS 904L Schedule 20 Pipe Thickness, 904L Austenitic Stainless Steel Pipe Manufacturers in Malaysia

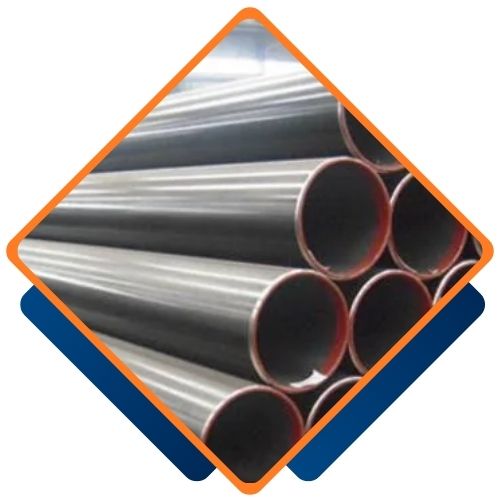

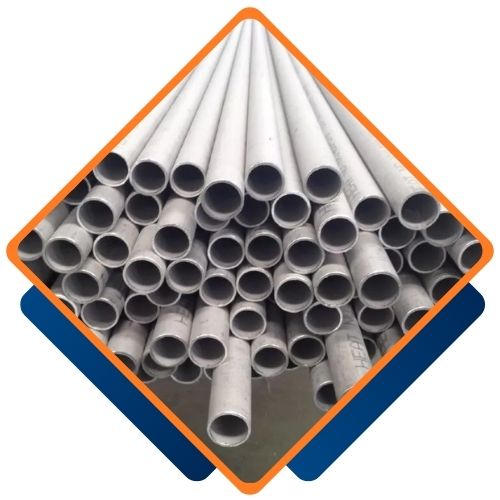

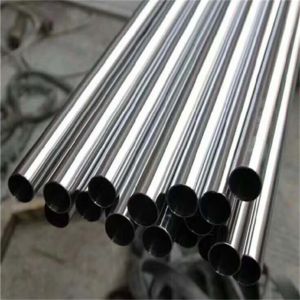

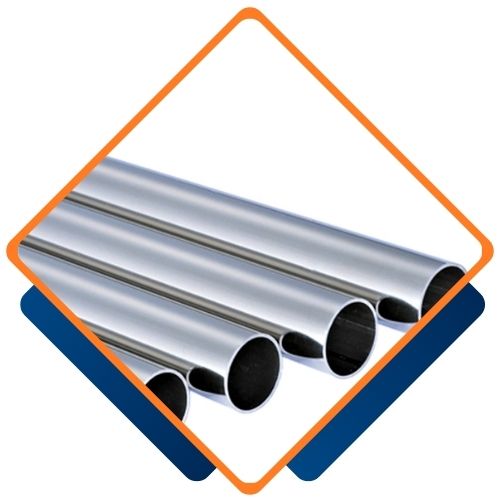

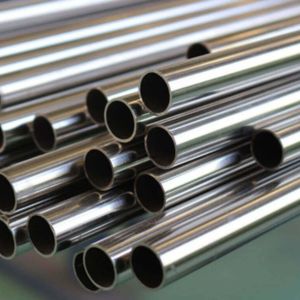

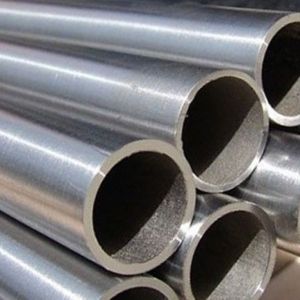

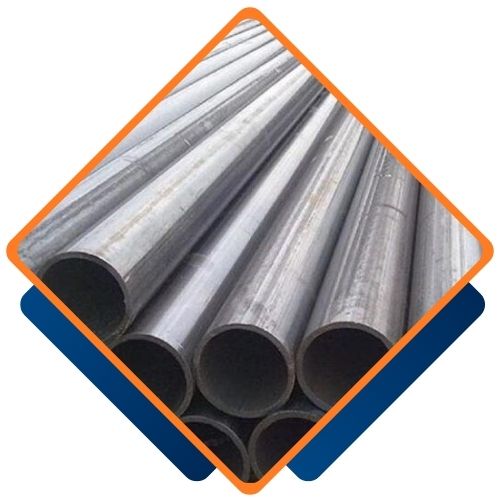

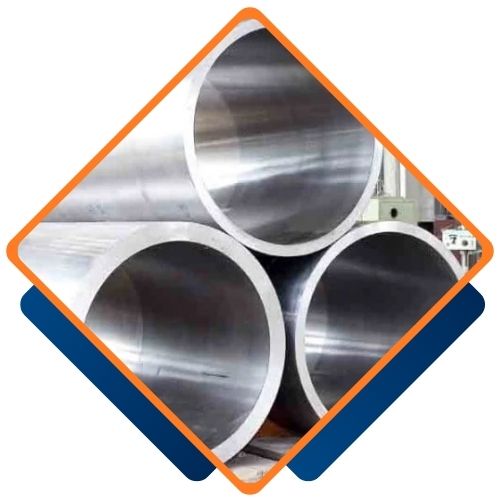

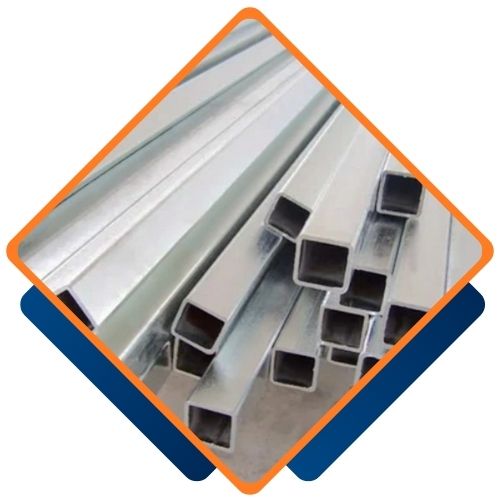

Types of Stainless Steel 904L Pipes

Are Custom Sizes Available for Stainless Steel 904L Pipes?

Yes, we offer custom sizes for Stainless Steel 904L Pipes to meet your specific requirements. Our team at Maria Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@mariapipes.com.

SS UNS N08904 Pipes Exporters in Ipoh, ASME SA 312 TP904L Pipes Kuantan , SUS 904L Pipes Distributor in Kuala lumpur, 904L SS Pipes Price Per Kg, 904L Austenitic Stainless Steel Pipe Supplier in Kuala lumpur, SS 904L Pipe Stockist in Malaysia, Stainless Steel 904L Pipes Dealer in George town

From a mechanical standpoint, 904L pipes deliver a tensile strength of at least 490 MPa, a yield strength of 220 MPa, and a minimum elongation of 35%, with typical hardness ranging from 70 to 90 Rockwell B ([allianzsteel.com][1], [Aspirinox Alloys Inc][5]). In terms of physical properties, the alloy has a density of about 8,000 kg/m³, an elastic modulus close to 190–200 GPa, thermal conductivity around 11.5–13 W/m·K, specific heat near 450–500 J/kg·K, and a coefficient of thermal expansion of approximately 15 µm/m·°C ([mcneilinstrument.com][6], [Aspirinox Alloys Inc][5], [ThePipingMart Blog][2], [prosaicsteel.com][7]).
