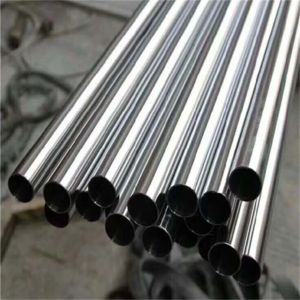

Stainless Steel 317L PipesManufacturer, Supplier and Exporter in Kuala lumpur, Malaysia

Maria Pipes and Tubes, based in Kuala Lumpur, Malaysia, is a reputable manufacturer and supplier of **Stainless Steel 317L Pipes**. We pride ourselves on delivering top-notch products that are specifically designed to resist corrosion in even the toughest environments. Stainless Steel 317L is a low-carbon, molybdenum-rich austenitic stainless steel, which means it offers outstanding protection against chemical attacks, especially in acidic and chloride-heavy situations. Our pipes are crafted to meet international standards, ensuring they are durable, easy to weld, and perform exceptionally well.

317L Stainless Steel Pipes Exporter in Malaysia, SS UNS S31703 Pipes Exporter in Kuala lumpur, 317L Stainless Steel Pipe Manufacturer in George town, SUS 317L Pipes Price List in Malaysia, ASTM A312 Stainless Steel 317L Pipe Supplier in Kuantan, Stainless Steel 1.4438 Pipes in Ipoh

Stainless Steel 317L Pipes contain 18-20% chromium, 11-15% nickel, 3-4% molybdenum, and low carbon, which increases its corrosion resistance Provides good mechanical properties with a tensile strength of about 515 MPa and a yield strength of 205 MPa, as well Benefits while maintaining high ductility include resistance to pitting, crevice corrosion and high temperature oxidation. Its durability makes it ideal for chemical, marine and high stress environments. Choosing 317L pipe will increase the reliability of your projects with durable performance. Keep making great choices!

Stainless Steel 317L Pipes Specification

Specifications	ASTM A312, A358 / ASME SA312, SA358
Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24″ NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Thickness Range	0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type	Seamless / ERW / Welded / Fabricated / CDW
Form	Round Pipes, Square Pipes, Rectangular Pipes
Length	Single Random, Double Random & Required Length
End	Plain End, Beveled End, Treaded
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5	EN 10216 317/317L Seamless Steel Pipe, EN 10216-5 1.4449 / 1.4438 Seamless Steel Pipes for pressure purposes
EN 10217-7	EN 10217 317/317L Welded Steel Pipe, Steel EN 10217-7 1.4449 / 1.4438 Welded Pipes for pressure purposes

Stainless Steel 317L Pipes Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
317L	min.	–	–	–	–	–	18.0	3.00	11.0	–
317L	max.	0.03	2.0	0.75	0.040	0.03	20.0	4.00	15.0	–

SS 317L Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
317L	515	205	35	95	217

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

SS 317L Schedule 40 Pipe Price List in Kuala lumpur, Stainless Steel S31703 Pipes Supplier in Kuala lumpur, SS 317L Pipes Supplier in Malaysia, ASTM A312 Stainless Steel 317L Pipe Exporter in George town, AISI 317L Pipes Exporter in Kuantan, 1 inch SS 317L Pipe Price in Ipoh, SS 317L Pipe Weight Chart, SS 317L Schedule 20 Pipe Thickness, 317L Austenitic Stainless Steel Pipe Supplier in Malaysia

Why Choose Stainless Steel 317L Pipes from Maria Pipes and Tubes?

The composition of **Stainless Steel 317L Pipes** primarily includes chromium, nickel, and molybdenum, with a lower carbon content to reduce carbide formation during welding. This unique blend provides remarkable resistance to pitting, crevice corrosion, and general wear while still maintaining impressive strength.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 317L Pipes Supplier in Kuala lumpur, Malaysia

Maria Pipes and Tubes, one of the largest suppliers of Stainless Steel 317L Pipes in Kuala lumpur, Malaysia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 317L Pipes Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

ASME SA 312 TP317L Pipes Kuantan, Stainless Steel 317L Pipes Supplier in Malaysia, 317L Stainless Steel Pipes Exporter in George town, SS UNS S31703 Pipes Supplier in Kuala lumpur, SS 317L Schedule 20 Pipe Exporter in Ipoh

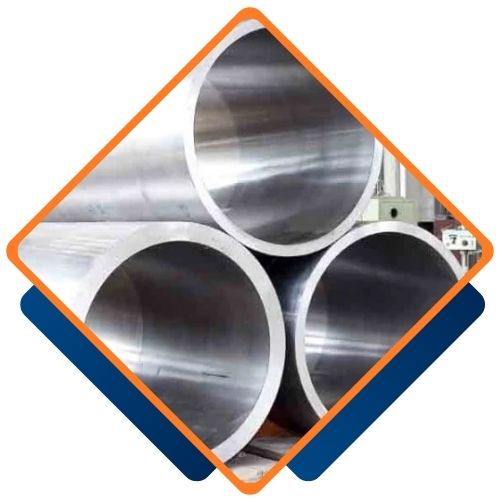

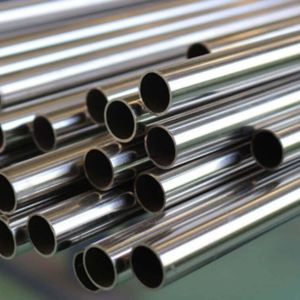

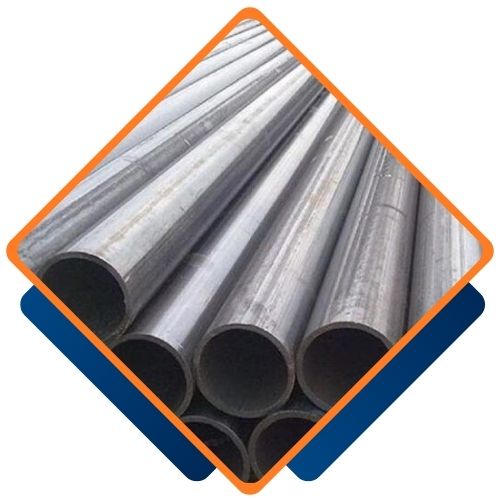

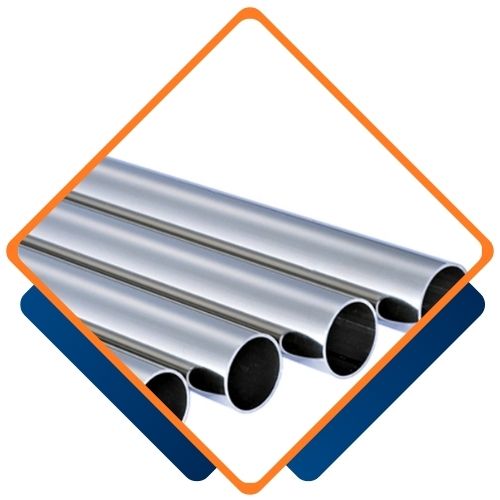

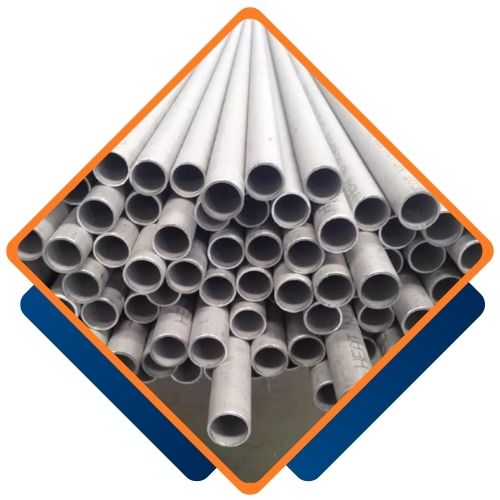

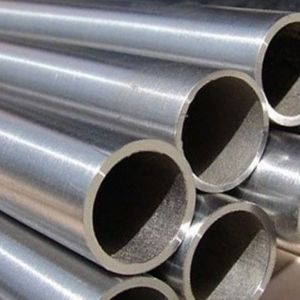

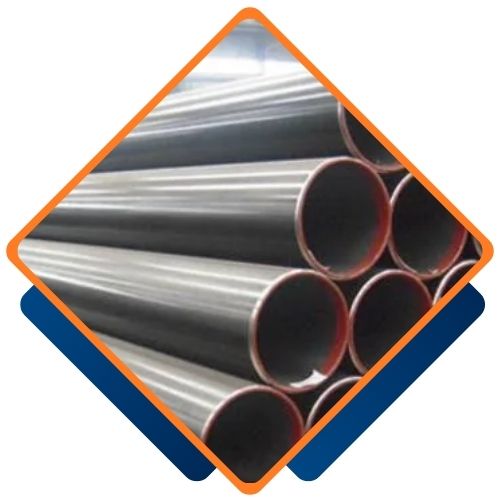

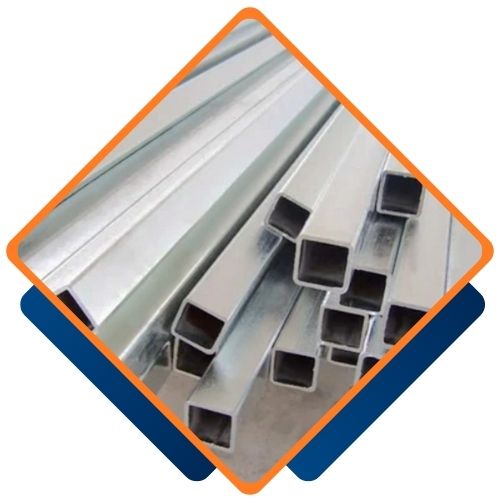

Types of Stainless Steel 317L Pipes

Are Custom Sizes Available for Stainless Steel 317L Pipes?

Yes, we offer custom sizes for Stainless Steel 317L Pipes to meet your specific requirements. Our team at Maria Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@mariapipes.com.

SS UNS S31703 Pipes Exporter in Ipoh, SUS 317L Pipes Supplier in Kuala lumpur, 317L SS Pipes Manufacturer in George town, 317L Austenitic Stainless Steel Pipe Dealer in Kuala lumpur, Stainless Steel S31703 Pipes Manufacturer in Kuantan, SS 317L Pipe Supplier in Malaysia

These pipes find their place in various industries, including chemical processing, pulp and paper, food and beverage, petrochemicals, and marine applications. Their ability to endure harsh conditions and retain their integrity in corrosive and high-moisture environments makes them a reliable choice for long-term use.
