Home > Stainless Steel >Stainless Steel 253Ma Pipes

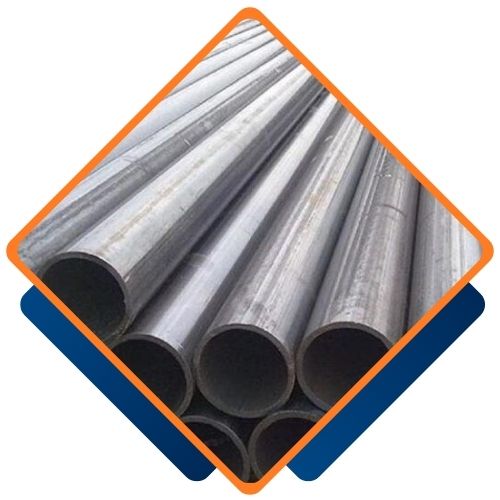

Maria Pipes and Tubes, a well-respected manufacturer and supplier located in Kuala Lumpur, Malaysia, specializes in high-quality Stainless Steel 253Ma Pipes that are built to excel in high-temperature settings. These pipes are celebrated for their remarkable oxidation resistance and impressive strength, ensuring they perform reliably even at scorching temperatures of up to 1150°C. With a perfect blend of durability, corrosion resistance, and excellent mechanical properties, Stainless Steel 253Ma Pipes are the go-to choice for demanding industrial applications. Maria Pipes and Tubes is committed to precision manufacturing and upholding international quality standards, providing products that cater to the diverse needs of industries around the globe.
The composition of Stainless Steel 253Ma Pipes includes roughly 20–22% chromium, 10–12% nickel, along with small yet crucial amounts of nitrogen, silicon, and rare earth metals. This distinctive blend boosts their high-temperature strength, oxidation resistance, and structural stability. With a tensile strength of about 600 MPa and a yield strength of around 310 MPa, these pipes exhibit excellent creep resistance and maintain their structural integrity even under prolonged exposure to heat. Their well-balanced chemical makeup also ensures they are easy to weld and form, making them versatile for various fabrication needs.
| Specification | ASTM A312, A358 / ASME SA312, SA358 |
| Size | 5.0 mm – 1219.2 mm |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Thickness Range | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |

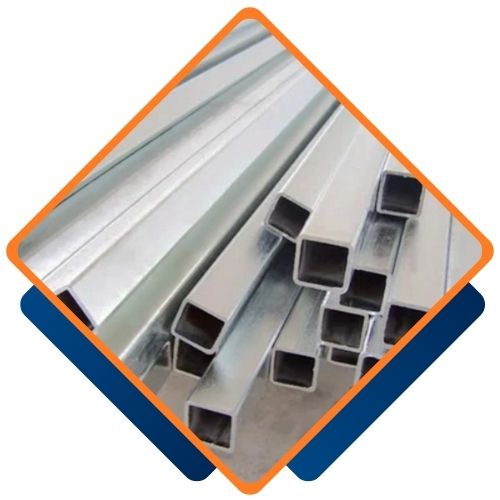

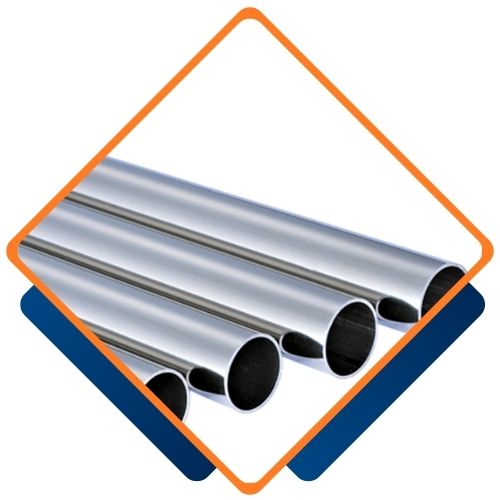

| Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Length | Single Random, Double Random & Required Length End: Plain End, Beveled End, Treaded |
| End Protection | Plastic Caps |
| Surface Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Schedule | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
| Pipe End | Plain End, Beveled End, Treaded. |
| Grade | C | Mn | Si | P | S | Cr | Ni |
| SS 253 MA | 0.10 max | 0.80 max | 2.0 max | 0.04 max | 2.0 max | 20.0 – 22.0 | 10.0 – 12.0 |
| Element | Density | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness |
| 253 MA | 7.8 g/cm3 | 600 | 40 | 310 | HR B – 95, HB – 217 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 253 MA | 1.4835 | S30815 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 253Ma Pipes from Maria Pipes and Tubes assures exceptional quality and durability to suit demanding applications. Our pipes exhibit outstanding corrosion resistance and strength, providing long-lasting performance. With our focus on precision manufacturing, we efficiently meet technical needs. Our team of experts provide personalized support and timely deliveries, enhancing your experience. We put customer satisfaction first and strive to build lasting partnerships. Trust Maria Pipes and Tubes for the reliable, high-performance piping solutions you need.
Maria Pipes and Tubes, one of the largest suppliers of Stainless Steel 253Ma Pipes in Kuala lumpur, Malaysia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Yes, we offer custom sizes for Stainless Steel 253Ma Pipe to meet your specific requirements. Our team at Maria Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@mariapipes.com.
Stainless Steel 253Ma Pipes find extensive use in industries that require materials resistant to heat, such as cement production, power generation, petrochemical processing, and furnace manufacturing. They are perfect for applications like heat exchangers, kiln components, recuperators, and burner nozzles. In the chemical sector, these pipes shine when it comes to managing hot corrosive gases and harsh environments. Their outstanding resistance to scaling and thermal fatigue makes them a top pick for equipment that endures extreme temperatures, guaranteeing a long service life and reliable performance even in tough operating conditions.
