Home > Stainless Steel > Stainless Steel Perforated Tubing

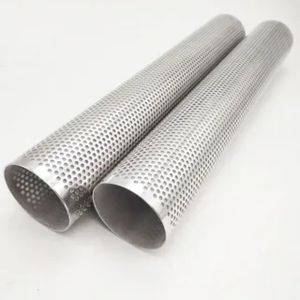

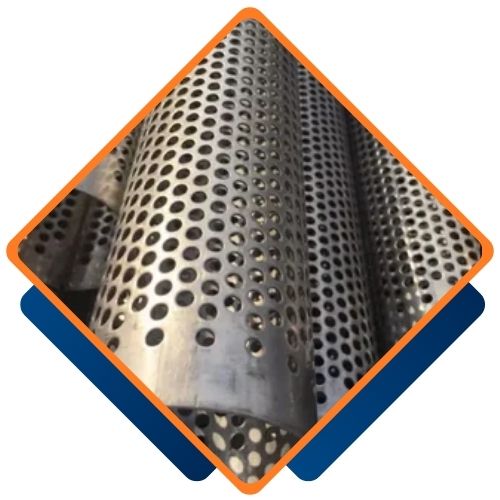

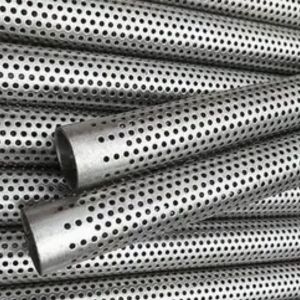

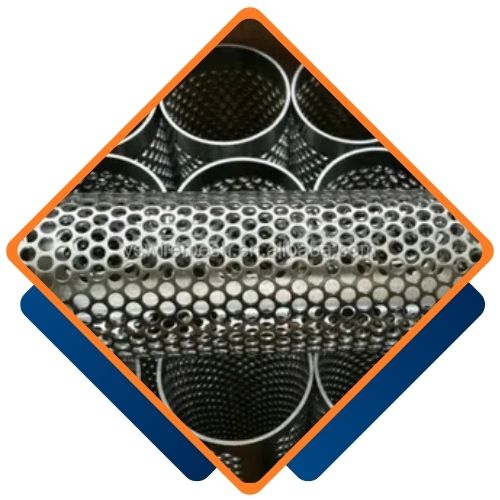

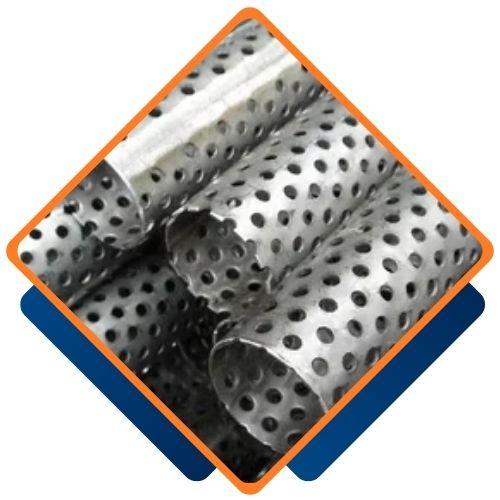

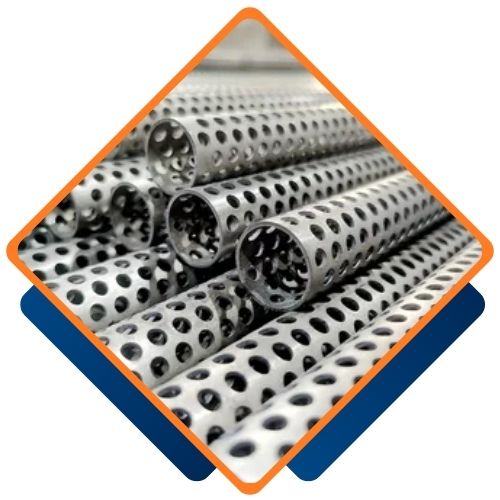

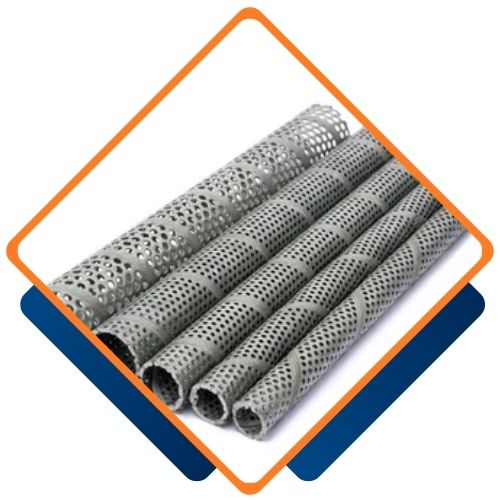

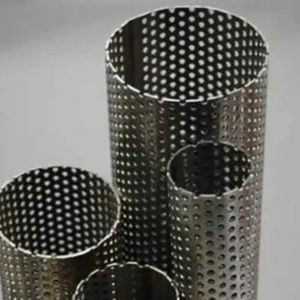

Maria Pipes and Tubes, located in Kuala Lumpur, Malaysia, is a reliable manufacturer and supplier of Stainless Steel Perforated Tubing, providing precise filtration and support solutions for both industrial and commercial needs. Our perforated tubing is crafted from high-quality stainless steel and utilizes advanced fabrication techniques to ensure outstanding strength, corrosion resistance, and consistent perforation patterns. Ideal for applications in filtration, screening, protective casings, and exhaust systems, our products adhere to international quality standards like ASTM A240 and A554. With a strong focus on quality, tailored solutions, and prompt delivery, we cater to industries such as oil & gas, food processing, water treatment, and construction.
Stainless Steel Perforated Tubing is generally produced from grades like 304, 304L, 316, and 316L stainless steel, which are celebrated for their durability, resistance to corrosion, and ease of machining. These grades include chromium (18–20%) and nickel (8–12%) to enhance strength and protect against oxidation and chemical damage. Perforation patterns can be tailored (round, slotted, square, etc.) with precise spacing and hole placement. The tubing boasts high tensile strength (up to 620 MPa), excellent weldability, and solid load-bearing capacity. It complies with ASTM A240, A554, and other relevant specifications based on the intended application and fabrication needs.
| ASTM | ASTM A249, A269, A270 |
| OD. | 1/8” NB to 24” NB, 1/4” OD to 24” OD sizes stainless steel welded tubes also available |
| Thickness | 0.2mm to 15mm |
| Hole size | 3mm dia on a 6mm pitch |
| Opening diameter | 0.2mm to 100mm |
| Material | SS 304, SS 304L,SS 316,SS 316L, SS201 |
| Finish | BA Finish inside and outside, Perforated finish inside and outside |
| Type | As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed |
| Mill Test Certificate | EN10204 3.1 |
| Packing | Sleeved, Ends Capped, Wooden Boxed |
| STAINLESS STEEL Perforated TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304L | S30403 | 1.4306 |
| 316 | S31600 | 1.4436 |
| 316L | S31603 | 1.4404 |
Choosing Stainless Steel Perforated Tubing from Maria Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Maria Pipes and Tubes, one of the largest suppliers of Stainless Steel Perforated Tubing in Kuala lumpur, Malaysia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| SIZE OD | NOMINAL WALL THICKNESS | OUTSIDE DIAMETER TOLERANCE | LENGTH TOLERANCE | WALL THICKNESS TOLERANCE | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
Yes, we offer custom sizes for Stainless Steel Perforated Tubing to meet your specific requirements. Our team at Maria Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@mariapipes.com.
Stainless Steel Perforated Tubing finds extensive use across various industries due to its adaptability in both structural and filtration roles. In the oil and gas industry, it acts as sand control screens and filter housings. In water treatment and chemical processing, it serves as a filtration medium for liquids and gases. The construction sector employs it for architectural elements, cladding, and sunshades. Additionally, it’s commonly found in automotive exhaust systems, HVAC ducts, and food processing equipment.
