Home > Stainless Steel > Stainless Steel Condenser Tubing

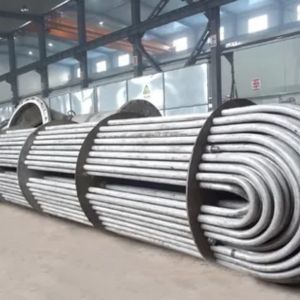

Maria Pipes and Tubes, located in Kuala Lumpur, Malaysia, stands out as a top manufacturer and supplier of **Stainless Steel Condenser Tubing**. They specialize in providing high-performance tubing solutions tailored for heat exchange and thermal transfer applications. Crafted to meet international quality standards, these tubes find their place in power plants, chemical industries, HVAC systems, and marine environments. With a variety of stainless steel grades, lengths, and wall thicknesses available, Maria Pipes and Tubes ensures that their products deliver precision, durability, and outstanding thermal efficiency.
Stainless steel condenser tubing is commonly made from alloys like 304 or 316, typically containing 18-20% chromium, 8-10% nickel, and varying amounts of molybdenum for improved corrosion resistance. This tubing exhibits excellent mechanical properties, including high tensile strength (up to 580 MPa), exceptional ductility, and good impact resistance. The advantages of stainless steel condenser tubing are numerous; it offers superior resistance to corrosion, particularly in marine and acidic environments, along with outstanding durability and the ability to withstand high temperatures. Its smooth surface minimizes fouling, enhancing heat transfer efficiency and making it an ideal choice for HVAC and industrial applications.
| Specifications | ASTM A213, ASTM A249, ASTM A269 |
| Size Range | 6 mm OD to 219.1 mm OD |
| Outside Diameter | From 6mm~2500mm |
| Length | 1 Mtr Upto 32 Mtrs Long / U-Tube Length – 32 Mtrs U Tube Coil – 50 Mtrs |
| Thickness | 0.7 mm Thick To12.7 mm Thick |

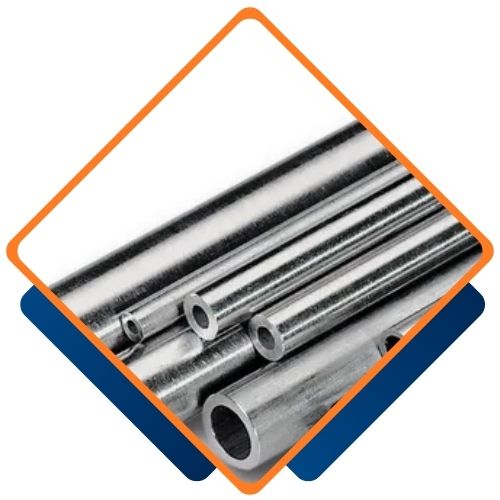

| Form | Seamless, Welded, Hot Rolled, Cold Drawn |

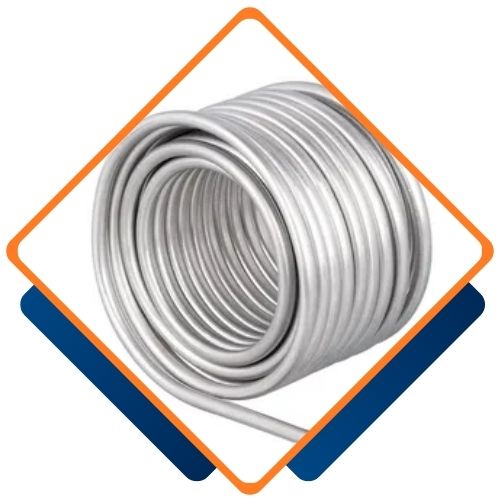

| Shapes | Straight tube, Coil tubing |
| Ends | Plain end, Bevelled end |
| Grades | TP – 304,304L,316,316L,201 |
| STAINLESS STEEL Condenser TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Condenser Tubing from Maria Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
When it comes to **Stainless Steel Condenser Tubing**, you’ll often find grades like 304, 316, 321, and 347, all celebrated for their exceptional corrosion resistance, particularly against moisture, chemicals, and seawater. These tubes are engineered to withstand high temperatures and thermal cycling without succumbing to cracks or degradation. Their smooth internal surfaces facilitate efficient heat transfer, while their robust mechanical properties guarantee a long service life, whether in static or dynamic conditions. Depending on the specific application needs, the tubing can be found in both seamless and welded forms.
| 12.70 mm OD | x | 0.6 mm wall | in lengths up to 20 m (65.62 ft) |
| 15.00 mm OD | x | 1.22 mm wall | in lengths up to 20 m (65.62 ft) |
| 19.05 mm OD | x | 1.65 mm wall | in lengths up to 20 m (65.62 ft) |
| 25.40 mm OD | x | 2.11 mm wall | in lengths up to 20 m (65.62 ft) |
| 38.10 mm OD | x | 2.64 mm wall | in lengths up to 20 m (65.62 ft) |
Yes, we offer custom sizes for Stainless Steel Condenser Tubing to meet your specific requirements. Our team at Maria Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@mariapipes.com.

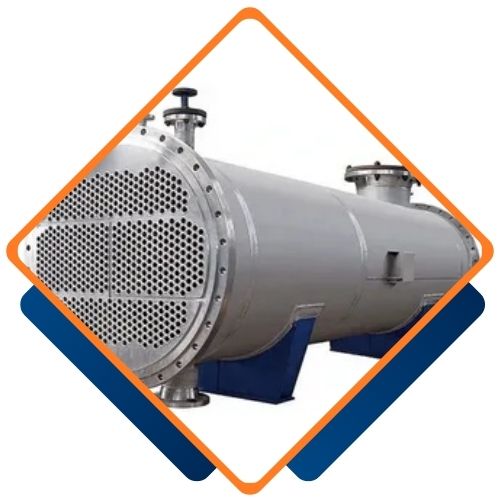

These tubes are essential components in condensers for steam turbines, refrigeration systems, HVAC cooling units, and chemical processing equipment. Their corrosion-resistant features make them perfect for environments exposed to water, brine, or chemical vapors. In marine and coastal settings, stainless steel condenser tubing excels at resisting saltwater corrosion. With a blend of strength, thermal conductivity, and resistance to fouling, this tubing is a dependable choice for ensuring optimal performance and efficiency in critical heat transfer systems.
