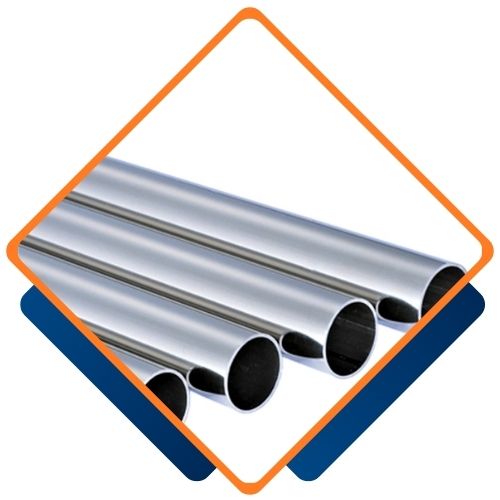

Maria Pipes and Tubes, located in Kuala Lumpur, Malaysia, has built a solid reputation as a reliable manufacturer and supplier of Nickel Alloy 201 Pipes, celebrated for their outstanding corrosion resistance and impressive strength. By employing cutting-edge manufacturing techniques and rigorous quality control measures, they produce Nickel Alloy 201 Pipes that adhere to international standards, catering to sectors like chemical processing, aerospace, and marine. Customers trust Maria Pipes and Tubes for robust and precise piping solutions that are engineered to perform consistently in challenging and corrosive conditions.
Nickel Alloy 201 Pipes are primarily made from high-purity nickel (at least 99%) with very low carbon content and minimal impurities such as iron and copper. This unique composition boosts their resistance to reducing acids and enhances their mechanical strength. Typically, these pipes boast a tensile strength of around 690 MPa, along with excellent ductility and toughness, making them perfect for welding, forming, and heavy-duty applications.
| ASTM Specification | ASME SB-161, ASME SB-829, ASME SB-775, ASME SB-725 |
|---|---|
| Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| ASTM B161 Nickel 201 Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| DIN 17740 UNS N02200 Welded Pipe Size | 5.0 – 1219.2 mm |
| Nickel WERKSTOFF NR. 2.4066 EFW Pipe size | 5.0 – 1219.2 mm |
| Swg & Bwg | 12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg., |
| BS 3075 201 Nickel Pipe Schedule | XS, SCH30, SCH40, XXS, SCH80, SCH120, SCH60, SCH140, STD, SCH10, SCH10S, SCH40S, SCH80, SCH20, SCH5, SCH160 |
| BS 3074 Nickel 201 pipe Length | Double Random, Single Random, Standard & Cut length Pipe |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |

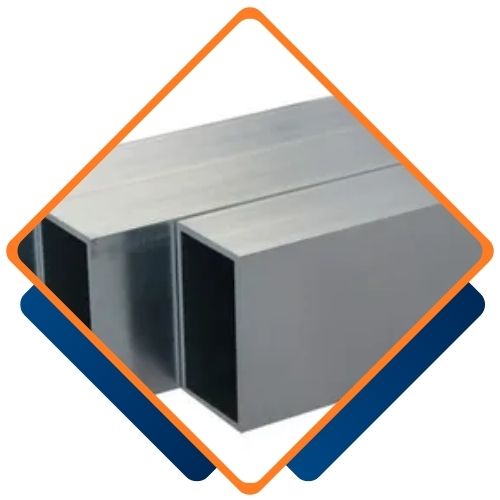

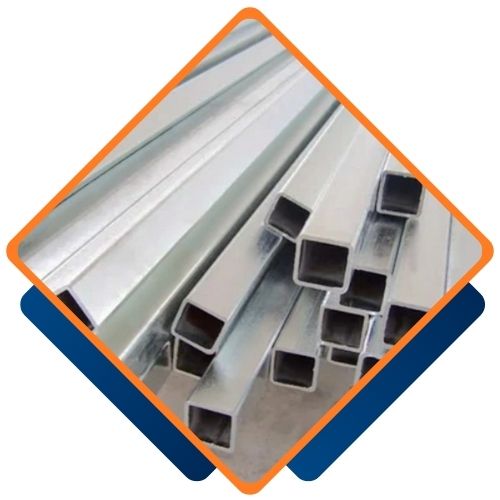

| Form | Nickel 201 are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |

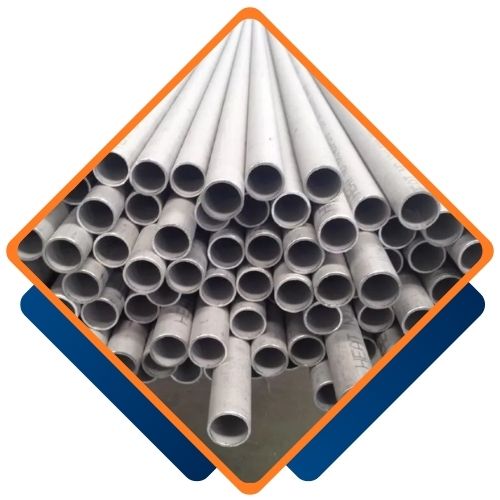

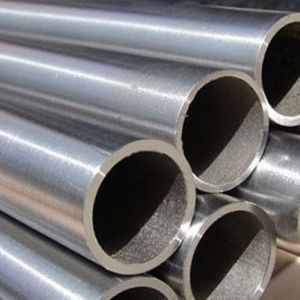

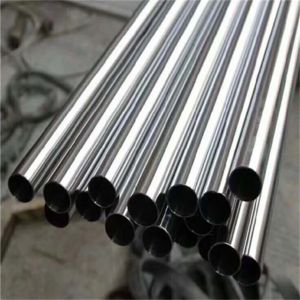

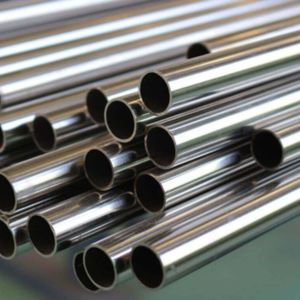

| Type of BS 3073 201 Alloy Pipe | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW nickel 201 |
| Nickel 201 pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Marking on ASME SB-725 Alloy 201 Pipe | All ASTM B161 Nickel 201 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application of BS 3076 Nickel 201 pipe | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize in | Large Diameter Nickel 201 pipe |
| NA11 DIN 17740 Nickel 201 pipe manufacturing Technique | Cold drawn, hot drawn, bright annealed, solid solution, hot extruding |
| Nickel 201 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| 99.0 min | 0.15 max | – | 0.35 max | 0.1 max | 0.4 max | – | 0.01 max | 0.25 max | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Nickel Alloy 201 Pipes from Maria Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications. It delivers reliability and performance in challenging environments while maintaining competitive pricing.
Maria Pipes and Tubes, one of the largest suppliers of Nickel Alloy 201 Pipes in Kuala lumpur, Malaysia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for nickel alloy products in the region.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Nickel 201 | N02201 | 2.4066 | N-100M | Ni 99.2 | NW 2201 | NA 11 | НП-2 |
Yes, we offer custom sizes for Nickel Alloy 201 Pipes to meet your specific requirements. Our team at Maria Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@mariapipes.com.
| ASTM B161 Nickel 201 Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
These Nickel Alloy 201 Pipes find extensive use in chemical processing plants, heat exchangers, marine applications, and electrical resistance heating equipment, thanks to their exceptional corrosion resistance and mechanical properties. Their durability and reliability make them a top choice for harsh environments where strength is essential. Maria Pipes and Tubes guarantees that their Nickel Alloy 201 Pipes meet the strict quality standards required by these industrial sectors.
